Smartphone revolution brings new features to the web development, it is time to change your website design into a responsive design instead of maintaining a separate mobile version . Responsive design will automatically adjust itself based on the screen size of the media devices. This post explain you how to use CSS 3 @media property and working with Internet Explorer using Modernizr.

Try live demo with different screen resolutions.

Step 1: Web layout divided into three horizontal parts are Header, Main and Footer. Here Header div divided into  two horizontal parts such as Logo and Nav and the same way Main div divided into Article and Sidebar.

HTML Code

<div id=”header“>
1 Header<div id=”logo“>logo</div>
<div id=”nav“>links</div>
</div><div id=”main“>
2 Main<div id=”article“>article</div>
<div id=”sidebar“>sidebar</div>
</div><div id=”footer“>
3 Footer
</div>

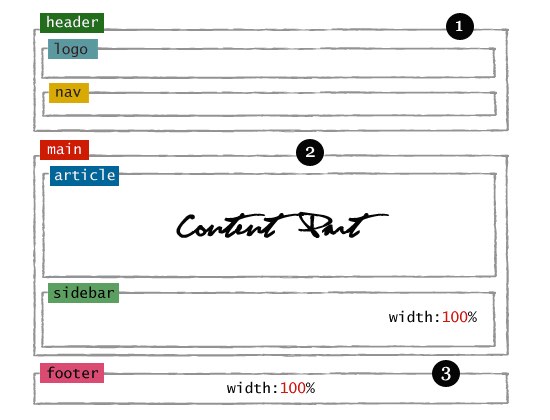

Wireframe

Responsive Web Design using CSS3

CSS

*{margin:0px;padding:0px}
#header
{
padding:20px;
overflow:auto;
}
#main
{
padding:10px;
}
#footer
{
padding:20px;
clear:both
}
#article,#sidebar
{
min-height:250px;margin-bottom:20px;overflow:auto
}
Step 2

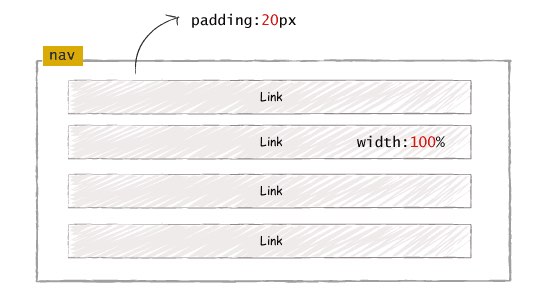

Now working with an unorder list <ul> tag.

<div id=”nav“>
<ul>
<li>link</li>
<li>link</li>
<li>link</li>
….
….
</ul>
</div>
Responsive Web Design using CSS3

CSS

ul
{
list-style:none;
width:100%
}
li
{
padding:4px;
margin-bottom:5px;
background-color:#ffffcc;
text-align:center;
color:#00000
}
Step 3 – @media 768px

Working with screen media resolution minimum width at 768px

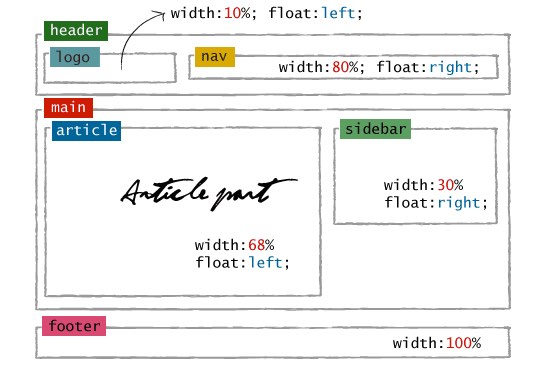

Wireframe @media 768px

Responsive Web Design using CSS3

CSS @media 768px

@media only screen and (min-width: 768px){#article
{
float:left;
width:68%;
}
#sidebar
{
float:right;
width:30%;
}
#logo
{
float:left;
width:10%;
}
#nav
{
float:right;
width:80%;
}}
Step 4 – @media 1140px

Working with screen media resolution minimum width at 1140px

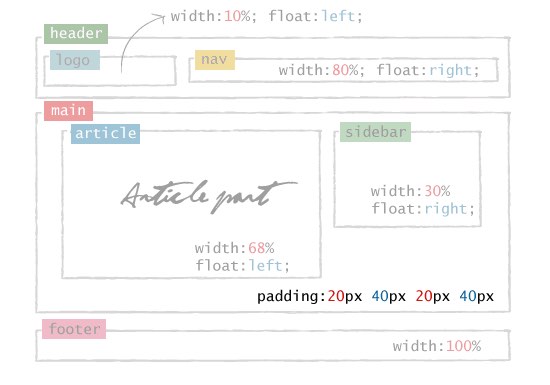

Wireframe @media 1140px

Responsive Web Design using CSS3

CSS @media 1140px

@media only screen and (min-width: 1140px) {#main
{
padding:20px 40px 20px 40px;
}}
Step 5 – @media 480px

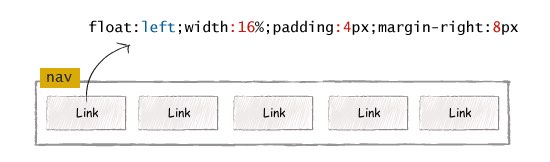

Working with Nav bar list media resolution minimum width at 480px. This is applicable for screen media resolution higher than 480px.

Responsive Web Design using CSS3
@media only screen and (min-width: 480px){ul
{
float:left;
}
li
{
float:left;
width:16%;
padding:4px;
margin-right:8px
}}
Modernizr

Modernizr is a JavaScript library that detects the availability of native implementations for next-generation Web Technologies. These technologies are new features that stem from the ongoing HTML5 and CSS3 specifications.

Responsive Web Design using CSS3

HTML Code
For implementing lower version browser like Internet Explorer 7 and 8, you just include modernizr.min.js after style sheet inside header tag. download link.

<!DOCTYPE html>
<!–[if lt IE 7]>
<html class=”no-js lt-ie9 lt-ie8 lt-ie7″>
<![endif]–>
<!–[if IE 7]>
<html class=”no-js lt-ie9 lt-ie8″>
<![endif]–>
<!–[if IE 8]>
<html class=”no-js lt-ie9″>
<![endif]–>
<!–[if gt IE 8]><!–>
<html class=”no-js”>
<!–<![endif]–>
<head>
<title>Responsive Design with CSS</title>
//Meta tag for devices
<meta name=”viewport” content=”width=device-width“>
<link rel=”stylesheet” href=”style.css“> //Style Sheet
<script src=”modernizr.min.js“></script>
</head>
<body><div id=”header“><div id=”logo“>Logo</div>
<div id=”nav“><ul>
<li>link</li>
<li>link</li>
<li>link</li>
<li>link</li>
<li>link</li>
</ul></div></div>

<div id=”main“>
<div id=”article“>Content Here</div>
<div id=”sidebar“>sidebar</div>
</div>

<div id=”footer“>
Footer
</div>

<body>
</html>

Now this code works fine with Internet Explorer lower version.

Note: Modernizer doesn’t support inline CSS.

style.css
Final CSS

*{margin:0px;padding:0px}
#header
{
padding:20px;
overflow:auto;
}
#main
{
padding:10px;
}
#footer
{
padding:20px;
clear:both
}
#article,#sidebar
{
min-height:250px;margin-bottom:20px;overflow:auto
}ul
{
list-style:none;
width:100%
}
li
{
padding:4px;
margin-bottom:5px;
background-color:#ffffcc;
text-align:center;
color:#00000
}@media only screen and (min-width: 480px){ul
{
float:left;
}
li
{
float:left;
width:16%;
padding:4px;
margin-right:8px
}}@media only screen and (min-width: 768px){

#article
{
float:left;
width:68%;
}
#sidebar
{
float:right;
width:30%;
}
#logo
{
float:left;
width:10%;
}
#nav
{
float:right;
width:80%;
}

}

@media only screen and (min-width: 1140px) {

#main
{
padding:20px 40px 20px 40px;
}

}

Note: Modernizer doesn’t support inline CSS.
